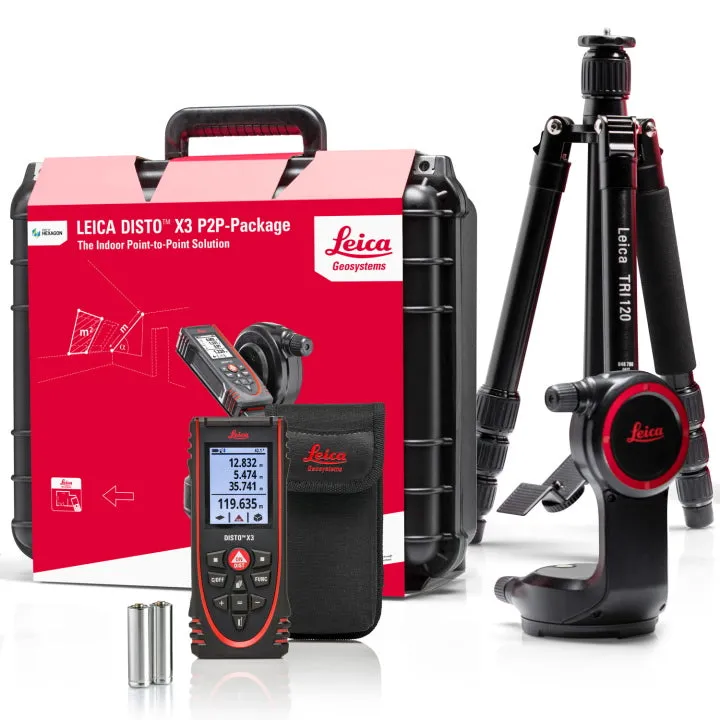

X3 P2P Kit with DST360 and TRI120 Tripod in Hard Case
- For LeicaDisto X3 and X4 laser distance meters
- Provides precise P2P measurements
- Allows horizontal and vertical angle measurements
- Made entirely of metal
- Smart area measurements
- With measure plan and measure facade
POINT TO POINT MEASURING
The DST 360 transforms your handheld DISTO™ X3 and X4 into a real measurement station, allowing you to accurately measure distances between any two points from one position.
3D POINT MEASUREMENT
Your DISTO™ X3 or X4 in combination with the DST 360 and the DISTO™ Plan app allow you to measure 3 dimensional points. X, Y and Z coordinates are recorded and can be exported into your CAD solution.
METAL DESIGN
The Leica DST 360 is made entirely out of metal. This ensures robustness and precise measurement results.
INTELLIGENT ADAPTER
Technologies used in the adapter extend the measurement possibilities of your DISTO™ X3 and X4. Powered by your DISTO™, the DST 360 exchanges measurement data with your X3 and X4. This allows for horizontal and vertical angle measurements.
PRECISE TARGETING
Fine adjustment on the Leica DST 360 allow you to accurately aim at distant measurement points in seconds.
INCLUDES:
- DST 360 Adapter for Leica Disto X-Series
- DST 360 Adapter
- TRI 120 Tripod
- Rugged Case
- Quickstart Guide
- Calibration Certificate
- 3-Year Warranty
Error 156: The transverse tilt is greater than /- 10°
To resolve: Hold the instrument without any transverse tilt
Error 162: Calibration mistake
To resolve: Make sure the device is placed on an absolutely horizontal and flat surface. Repeat the calibration procedure. If the message still occurs, contact the dealer
Error 204: Calculation error
To resolve: Repeat measurements, make sure to follow the sequence according to the manual
Error 205: S910 memory full
To resolve: Delete memory
Error 220 & 224: Hardware error
To resolve: If the message continuously appears, contact the dealer for service
Error 240 & 245: Data transfer error
To resolve: Re-connect device with computer and repeat procedure
Error 252: Temperature too high
To resolve: Let device cool down
Error 253: Temperature too low
To resolve: Let device warm up
Error 254: Battery voltage too low for measurements
To resolve: Change batteries
Error 255: Received signal too weak, measuring time too long
To resolve: Change target surface (i.e. white paper)
Error 256: Received signal too high
To resolve: Change target surface (i.e. white paper)
Error 257: Too much background light
To resolve: Shadow target area
Error 258: Measuring outside of measuring range
To resolve: Correct range
Error 260: Laser beam interrupt
To resolve: Repeat measurement
Error 284: Laser defect
To resolve: If message continuously appears, contact the dealer for service
Error 288-294: Hardware error
To resolve: If message continuously appears, contact the dealer for service
Error 300: Smart base not folded out
To resolve: Fold out Smart Base
Error 301: Device was moved, levelling not valid anymore
To resolve: Perform levelling again. Levelling with invalid levelling is possible, but it will affect the accuracy
Error 302: S910 "Point data transmission" is selected, but WLAN is off
To resolve: Switch on WLAN
Error 303 - 306: Error with Leica DST 360 Adapter
To resolve: Repeat procedure and if message still occurs, contact your dealer
Error 340: WLAN: Data transfer error
To resolve: Repeat procedure
Error 341: Authentication error
To resolve: Use correct password
Error >1000: Hardware error
To resolve: If message continuously appears, contact the dealer for service
Error 14041: Smart Base defect
To resolve: If message continuously appears, contact the dealer for service
